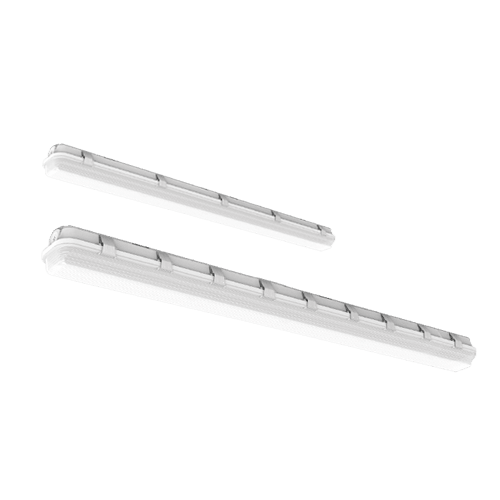

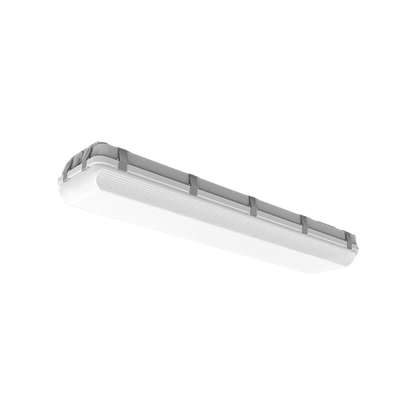

4′ / 8′ Vapor Seal Luminaire

CONSTRUCTION

• Polycarbonate housing, frosted lens, and stain-less clips offer protection against dust, humidity and water spray. Environmental-friendly powder coat painted reflector. Compact, slick profile design makes it easy for installation.

ELECTRICAL

• Luminaire is built with the highest quality driver that is universal voltage 120-277V50/60Hz, Class P and Class 2 with 2kV Surge Protection, uses highly-efficient LED packages to ensure cool temperatures for long lasting life span.

OPTICAL SYSTEM

• Long life and high-efficiency surface mount LEDs. 100,000-hour LED lifespan based on LM-80 results and TM-21 calculations.

DIMMING

• Continuous dimming (0-10V) comes standard. Compatible with dimmers, sensors and controls for deeper energy-savings.

MOUNTING

• V-hooks/surface mount (included), 45° corner mount, and junction box.

ENERGY SAVINGS

• Over 50% energy savings than traditionally fluorescent fixtures, low heat productions requires less maintenance and operation cost.

LISTING

• UL Listed, IP66 Rated, NEMA 4X, NSF, RoHS

WARRANTY

• 5 year Limited Warranty
