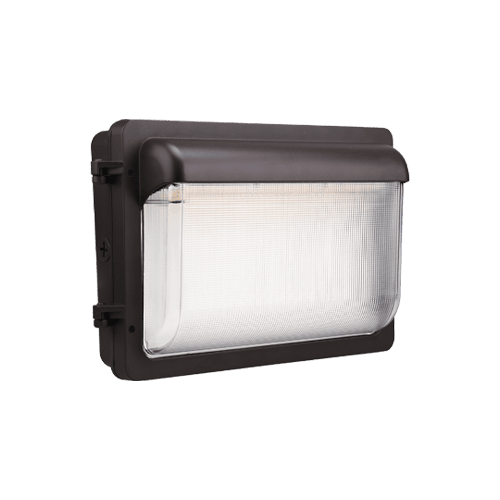

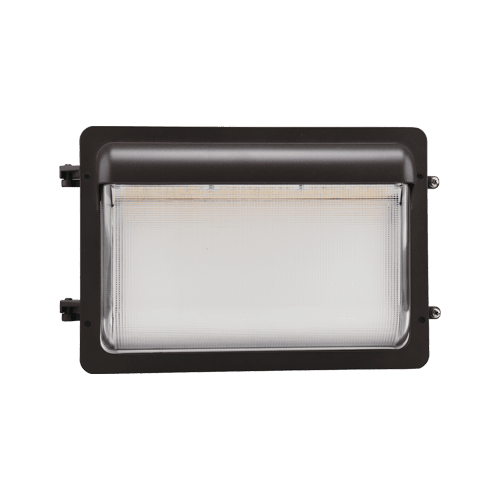

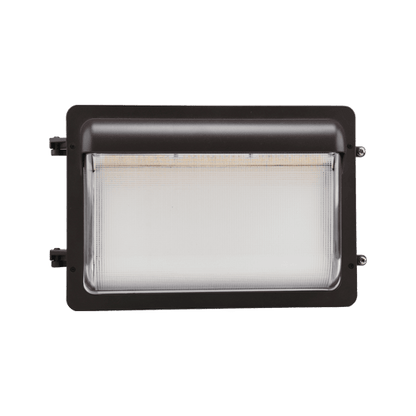

Slim Wall Pack with CCT and Wattage Selector

CONSTRUCTION

• The die-cast aluminum is a durable, powder-coated housing sealed by a silicone ring which enables the luminaire to achieve dust and weather resistance. The fixture has been constructed and complies with UL wet location ratings, IP65.

OPTICS

• Borosilicate glass lens designed to reduce glare and improve over-all light distribution through precision formed LED optics.

ELECTRICAL

• Luminaire is built with the highest quality 0-10V dimmable LED driver that operates with Universal Voltage (120V-277V) and is completed with 4KV surge protection.

MOUNTING

• Quick setup with just a screwdriver and drill. Mount the base, connect L/N/G wires, seal with the EVA pad, and secure the cover. Simple, fast, and no extra tools needed.

CONTROLS

• Options available for occupancy sensors with daylight harvesting fuction.

LISTING

• UL Listed. DLC Premium Listed.

LIFESPAN

• L70 Rated for 100,000 hours
